P-series Semi-Automatic Tablet Tester

Request a Quote

""
""
FDA 21 CFR 11 Compliance

P-series

Semi-automated tablet testing units

The versatile P-series laboratory testers offer you the latest technology, a space-saving design, and maximum flexibility. Adapt the basic units (P3-P5) to your requirements at any time.

The P5 version tests all five measured variables automatically. The VibrALIGN and Roto system make it easy to position tablets precisely.

The intuitive touch display enables quick and easy operation. The measurements results are shown directly on the clearly arranged display, and can be printed out or exported as PDF reports.

The LAB.line design also offers many practical advantages: the generous radii, rounded corners and smooth surfaces allow easy and hygienic cleaning. The sturdy hood provides protection against environmental influences during measurements.

Now with intuitive all-in-one touch software

The database-driven all-in-one touch software requires no additional software solutions for most areas of application and ensures maximum convenience. Its range of functions can be expanded modularly - just as requirements demand. E.g. upgrade the software with the FDA-21-CFR-Part-11 module to comply with the FDA guidelines.

Advantages

  • Intuitive touchscreen operation​
  • Modular expandable database-driven all-in-one touch software
  • Automatic positioning of specimens​​​
  • Clean design
  • Integrated 360° LED status display
  • Interfaces: USB and LAN​​​

Options

  • Load cells: 50 N, 500 N (standard), 1000 N
  • Dynamic adjustment / calibration
  • License: FDA 21 CFR Part 11 (including audit trail, batch report, user management)
  • Licenses: TTS11 interface, user management, import and export (LIMS, CSV), IQ /OQ
  • Extra software licenses on request
  • VibrALIGN system
  • Roto system (manual, adjustable grooved plate) for easy tablet positioning in the P3 and P4 models
  • Cover frame without hood​

The LAB.line P-series is available in various models:

Measured variables

​

MODEL



HARDNESS



DIAMETER / LENGTH



WIDTH



THICKNESS



WEIGHT

P3

X

X

—

X

—

P3+

X

X

—

X

—

P4

X

X

—

X

X

P4+

X

X

—​

X

X

P5

X

X

X

X

X​​​​​​​​​​


Device models P3+ and P4​​+ use the VibrALIGN system for optimal orientation during hardness measurements.​

Tablet positioning that's one of a kind with the VibrALIGN and Roto systems​

VibrALIGN system​

The tablets are precisely rotated 90° in the​​​ hardness station for width measurement with the integrated​ VibrALIGN system.

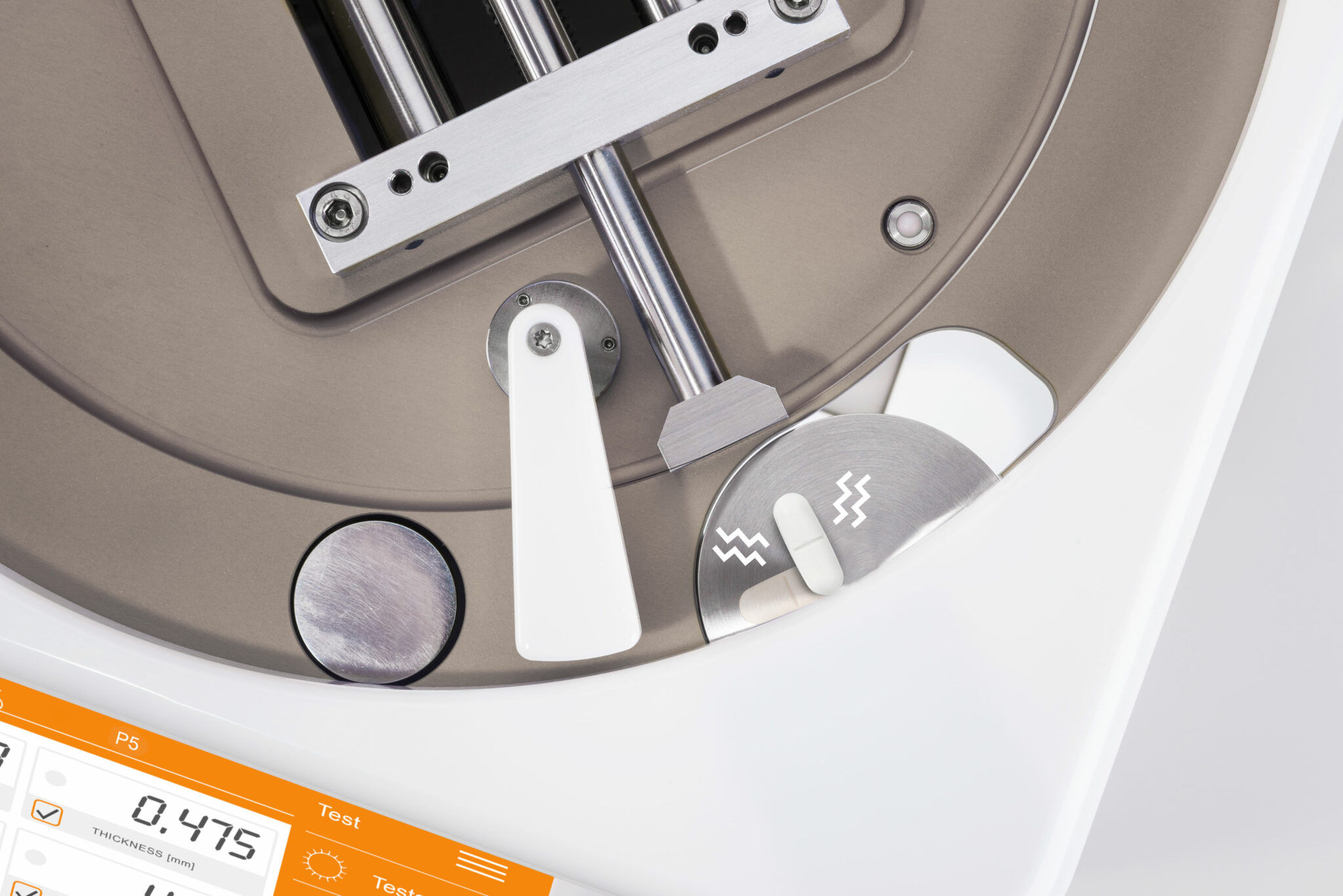

Ro​to​​​ system (manual, adjustable grooved plate)

In the P4 model, the Roto system (manual, adjustable grooved plate) ensures easy tablet positioning. You can choose from three different settings: a flat, light or deep groove.​​​

The ad​vantages of the P-series. Precise, high quality and user-friendly.

hand interacting with a yellow and white touchscreen interface

Modular all-in-one touch software

Simple and self-explanatory touch screen user interface | No additional external software required for most applications | Optional licenses for FDA 21 CFR Part 11 compliance, user management, import/export (LIMS, CSV) and more

P series shown without the plexiglass top cover

Optional without cover

In the P series, the cover hood can be replaced very easily with an optionally available cover frame if required

hand holding a small cloth is wiping the interior of the device

Clean design

Always hygienic and clean | With its rounded corners, edges and smooth surface, the P-series is always easy to clean

LED status display green

Integrated 360° LED status display

The clear LED display provides information on the unit's status at all times | The status of the device can be easily detected, even from a distance

Specifications

ModelP-series
W x D x H (mm)320 x 320 x 185
Weight (kg)≈ 15 (depending on the model)
